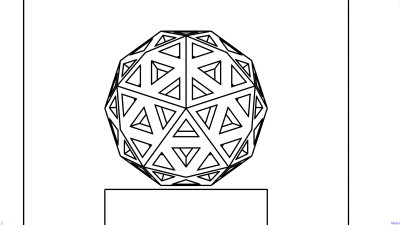

Floor plans and elevations from 3D

Create a floor plan (top view) by

• boolean your geometry with a cutting plane set to 'seams'.

The elevation (top or side view) is done by

• removing backward polygons
• converting 'hard' edges to resampled curves
• removing occluded points.
