Connecting points by corresponding IDs

calendar_today

11.09.2022

label

Modeling

mouse

Houdini 18.5

1 Introduction

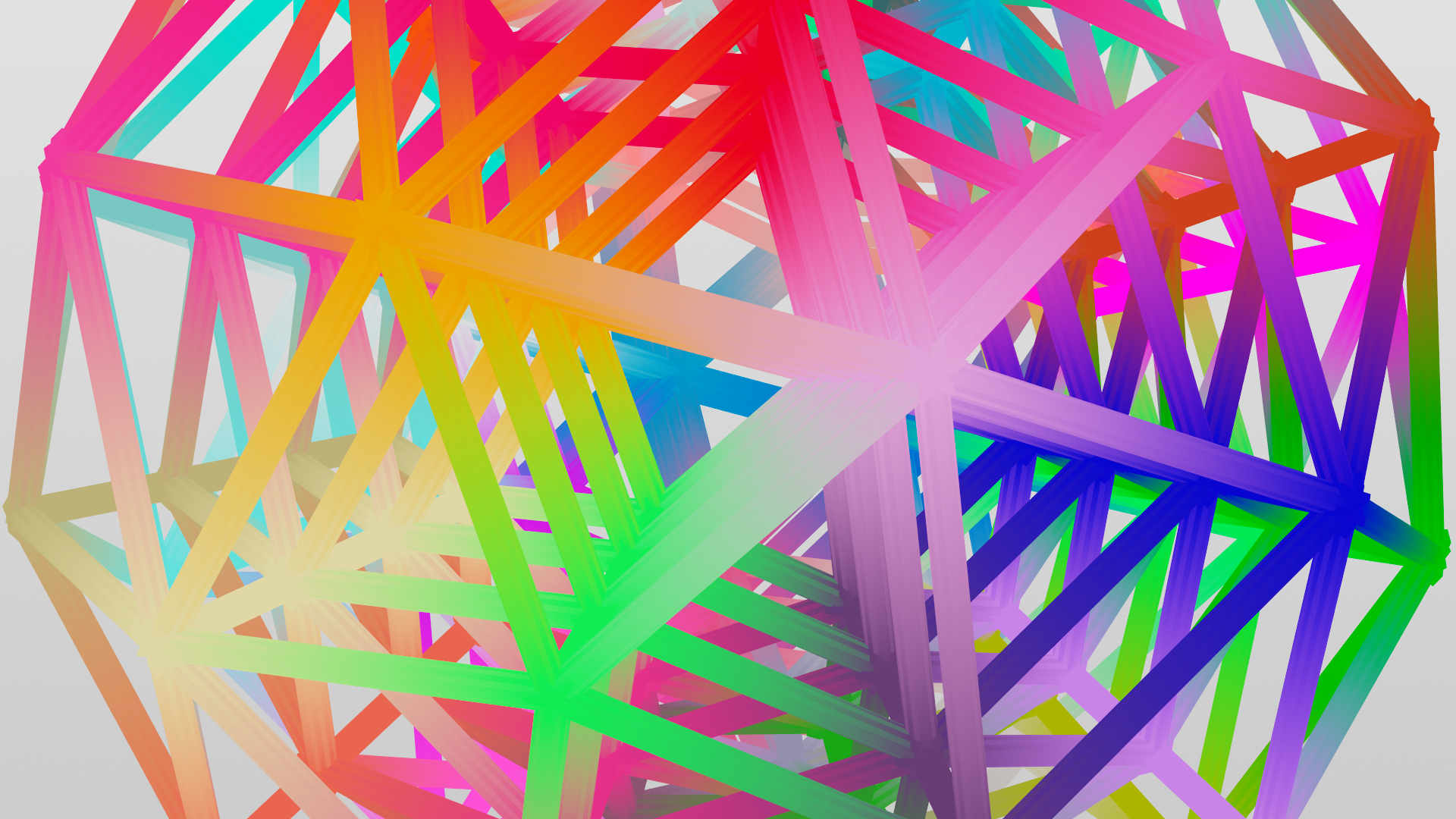

Three ways to connect points by common IDs. Use the enumerate SOP to give each point an individual ID before creating duplicates.

2 SOPs

Add SOP: Polygons > By group > By attribute: id

3 H-Script + VEX

Grid set to rows:

// HScript expressions for grid resolution
nuniquevals('../copy1', D_POINT, 'id')
nuniquevals('../copy1', D_PRIMITIVE, 'copynum')
// point wrangle for connecting
int index = vertexprimindex(0, i@vtxnum);
int pt_crv = findattribval(1, 'point', 'id', i@primnum, index);
v@P = point(1, 'P', pt_crv);

4 VEX

// detail wrangle
int num = nuniqueval(0, 'point', 'id');
for(int i = 0; i < num; i++){
    int pts[] = {};
    int count = findattribvalcount(0, 'point', 'id', i);
    for(int k = 0; k < count; k++){
        int pt = findattribval(0, 'point', 'id', i, k);
        append(pts, pt);
    }
    int prim_crv = addprim(0, 'polyline', pts);
    setprimgroup(0, 'connect', prim_crv, 1, 'set');
}

nuniqueval() returns how many IDs exist in total.
findattribvalcount() returns the number of points that share the same ID.
findattribval() returns the point number of each member with the same ID.
