Creating non-overlapping tiles without jumping through too many loops can be quite a challenge. In such cases, code examples from the Shadertoy community can be really inspiring to us, perhaps more node based, Houdini artists.

This original code written by a user called fizzer cleverly offsets a checkerboard and supports scaling as well as shifting the entire pattern. A translation to Houdini's VEX to be used inside primitive wrangle might look like this:

// https://www.shadertoy.com/view/3styzn
// original code by fizzer, 2020

float scale = 1.0 / chf('scale');
float offset_x = chf('offset_x');
float offset_y = chf('offset_y');

vector uvw = fit(v@P, getbbox_min(0), getbbox_max(0), 0.0, 1.0);
vector2 uv = (vector2(uvw) + set(offset_x, offset_y)) * scale;

vector2 f = frac(uv);
vector2 c = floor(uv);
vector2 coord_tex = f;
vector2 coord_tile = c;

float r0 = rand(floor(uv));

int orientation = (int(c.x) + int(c.y)) & 1;
if(f[orientation] > r0){
    coord_tile[orientation] += 1.0;
}
coord_tex[orientation] = abs(coord_tex[orientation] - r0);

vector2 offset_cell = vector2(0.0);
offset_cell[orientation] = (f[orientation] > r0) ? 1.0 : -1.0;

float r1 = rand(c + offset_cell);

if(f[orientation ^ 1] > r1){
    coord_tile[orientation ^ 1] += 1.0;
}

coord_tex[orientation ^ 1] = abs(coord_tex[orientation ^ 1] - r1);

u@coord_tile = coord_tile;

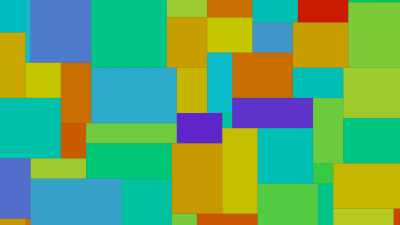

After this, the primitives are split up by the coord_tile attribute and a divide node removes inner edges, which leaves us with clean tiles that can be projected onto surfaces or used as a base for texturing.
