Sphere or circle from three points

calendar_today

27.12.2022

label

VEX

mouse

Houdini 17.0

Description

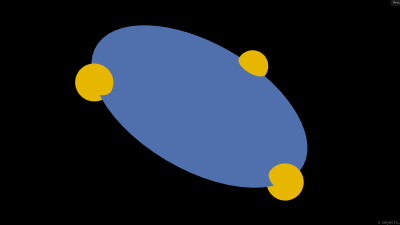

A sphere or a circle is positioned and oriented to intersect with three given points.

1 Code

Optionally replace sphere with circle in line 34.

CPP
        // 3D INTERSECTION
function vector intersection(vector r1, r2, e1, e2){
    float u = dot(e1, e2);
    float t1 = dot(r2 - r1, e1);
    float t2 = dot(r2 - r1, e2);
    float d1 = (t1 - u * t2) / (1 - u * u);
    float d2 = (t2 - u * t1) / (u * u - 1);
    vector p1 = r1 + e1 * d1;
    vector p2 = r2 + e2 * d2;
    vector pos_center = (p1 + p2) * 0.5;
    return pos_center;
}

// INPUT POSITIONS
vector pos_A = point(0, 'P', 0);
vector pos_B = point(0, 'P', 1);
vector pos_C = point(0, 'P', 2);

vector mid_AB = (pos_A + pos_B) * 0.5;
vector mid_BC = (pos_B + pos_C) * 0.5;

// DIRECTIONS
vector dir_BA = normalize(pos_B - pos_A);
vector dir_BC = normalize(pos_B - pos_C);
vector dir_rect = normalize(cross(dir_BA, dir_BC));
vector dir_BA_rect = normalize(cross(dir_BA, dir_rect));
vector dir_BC_rect = normalize(cross(dir_BC, dir_rect));

// ADD SPHERE
vector pos_center = intersection(mid_AB, mid_BC, dir_BA_rect, dir_BC_rect);
float radius = distance(pos_center, pos_A);
int pt_add = addpoint(0, pos_center);
int sphere_add = addprim(0, 'sphere', pt_add);
matrix3 xform_sphere = dihedral({0,0,1}, dir_rect);
scale(xform_sphere, radius);
setprimintrinsic(0, 'transform', sphere_add, xform_sphere);


Source: https://stackoverflow.com/questions/10551555/need-an-algorithm-for-3d-vectors-intersection

download

Downloads

link

Related articles

favorite

378

label

VEX

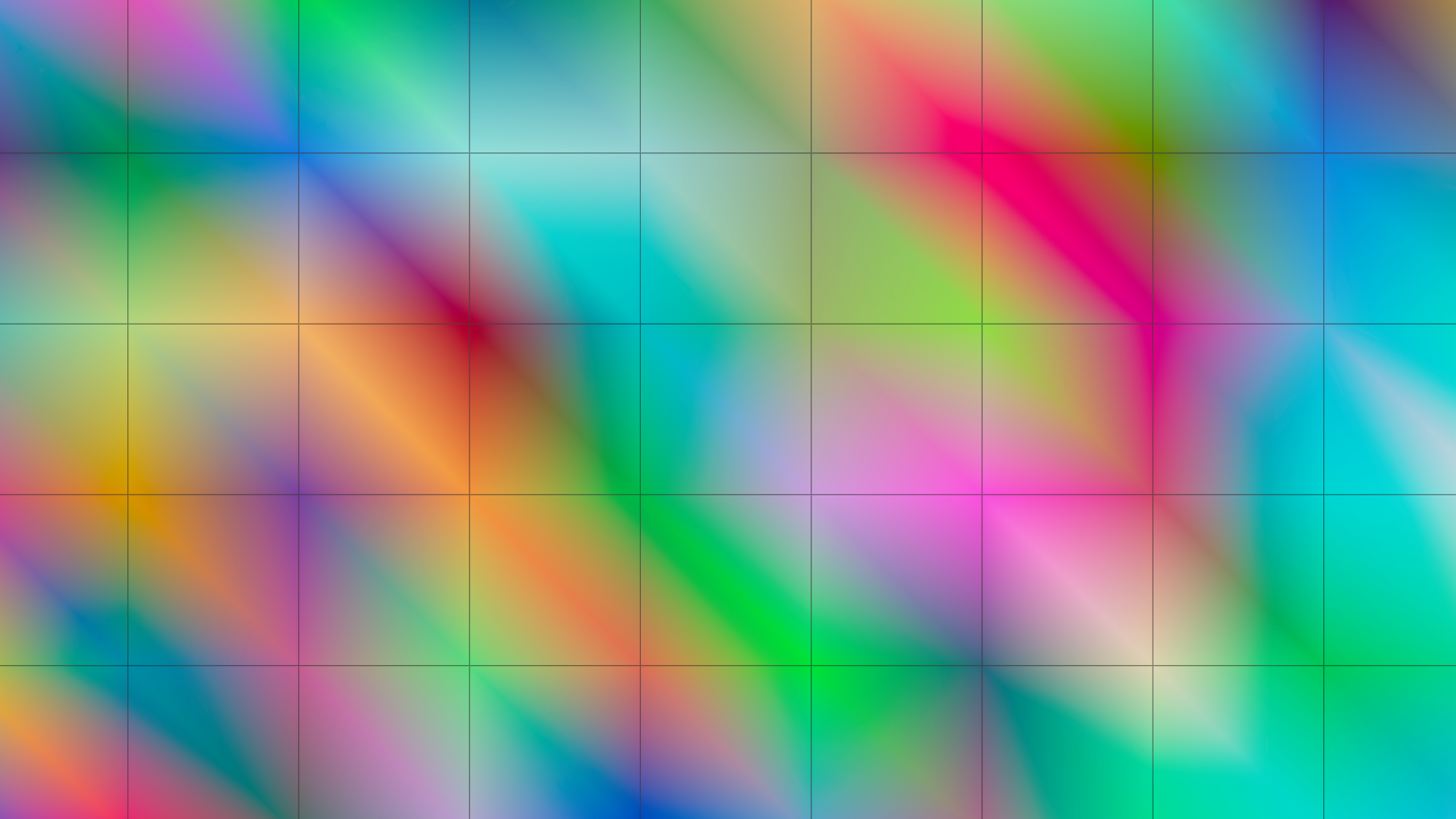

Attribute to match across inputs

favorite

259

label

VEX

Sphere Packing / Dart Throwing Algorithm

favorite

280

label

VEX

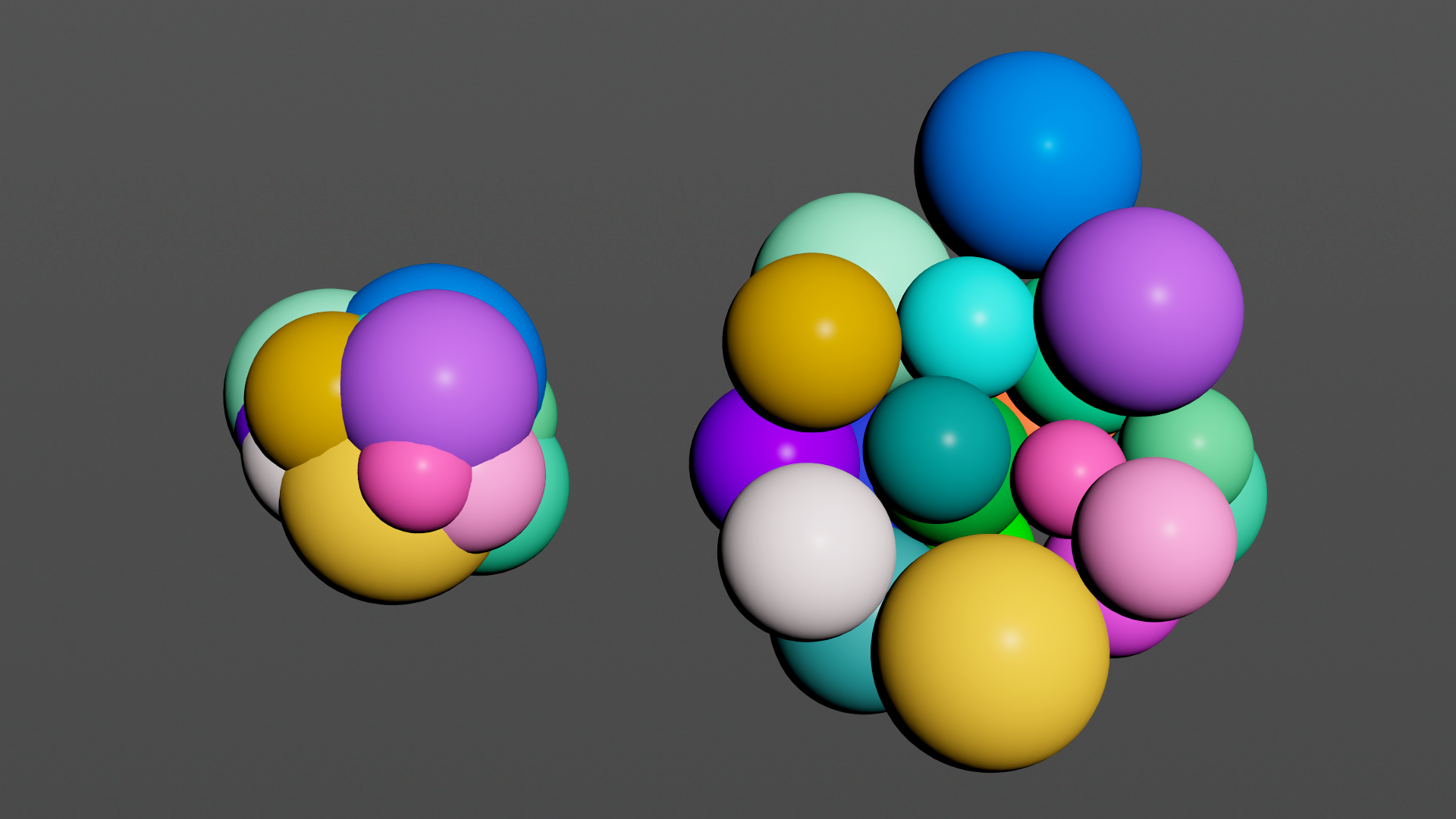

Deintersecting spheres with Voronoi

favorite

322

label

VEX

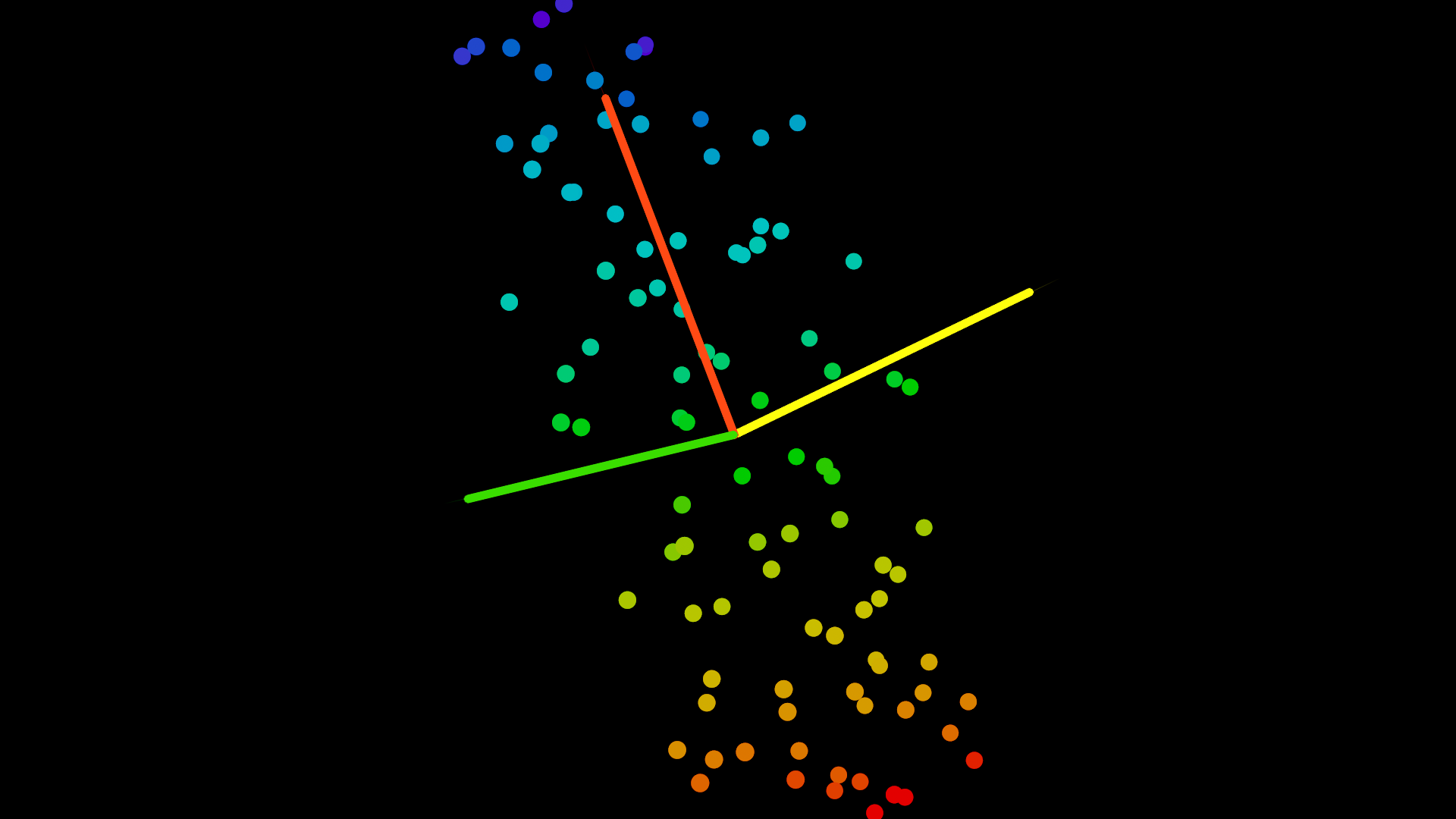

Fitting Planes to Point Clouds

favorite

328

label

VEX

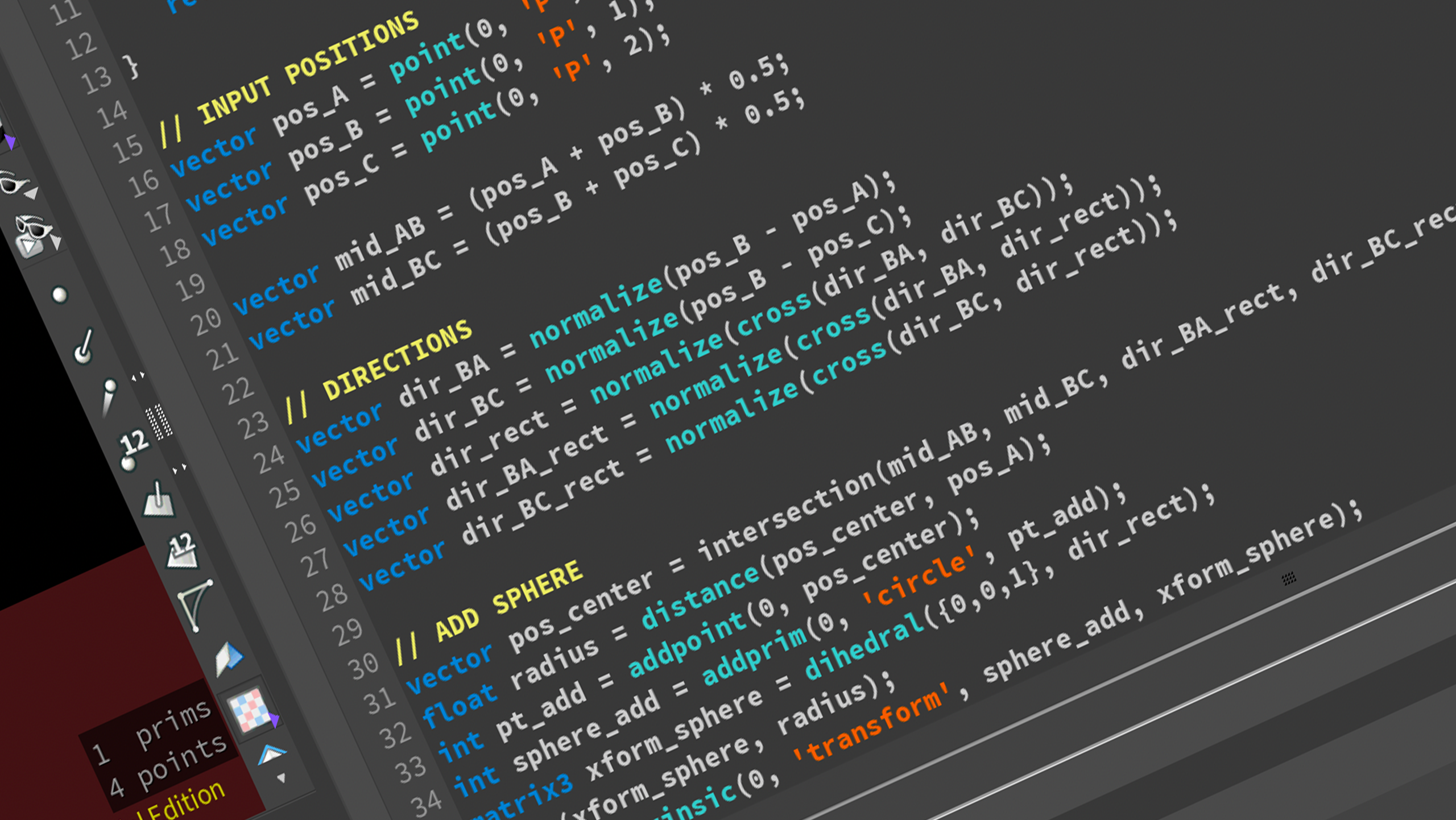

How to Analyze VEX Code

favorite

159

label

VEX

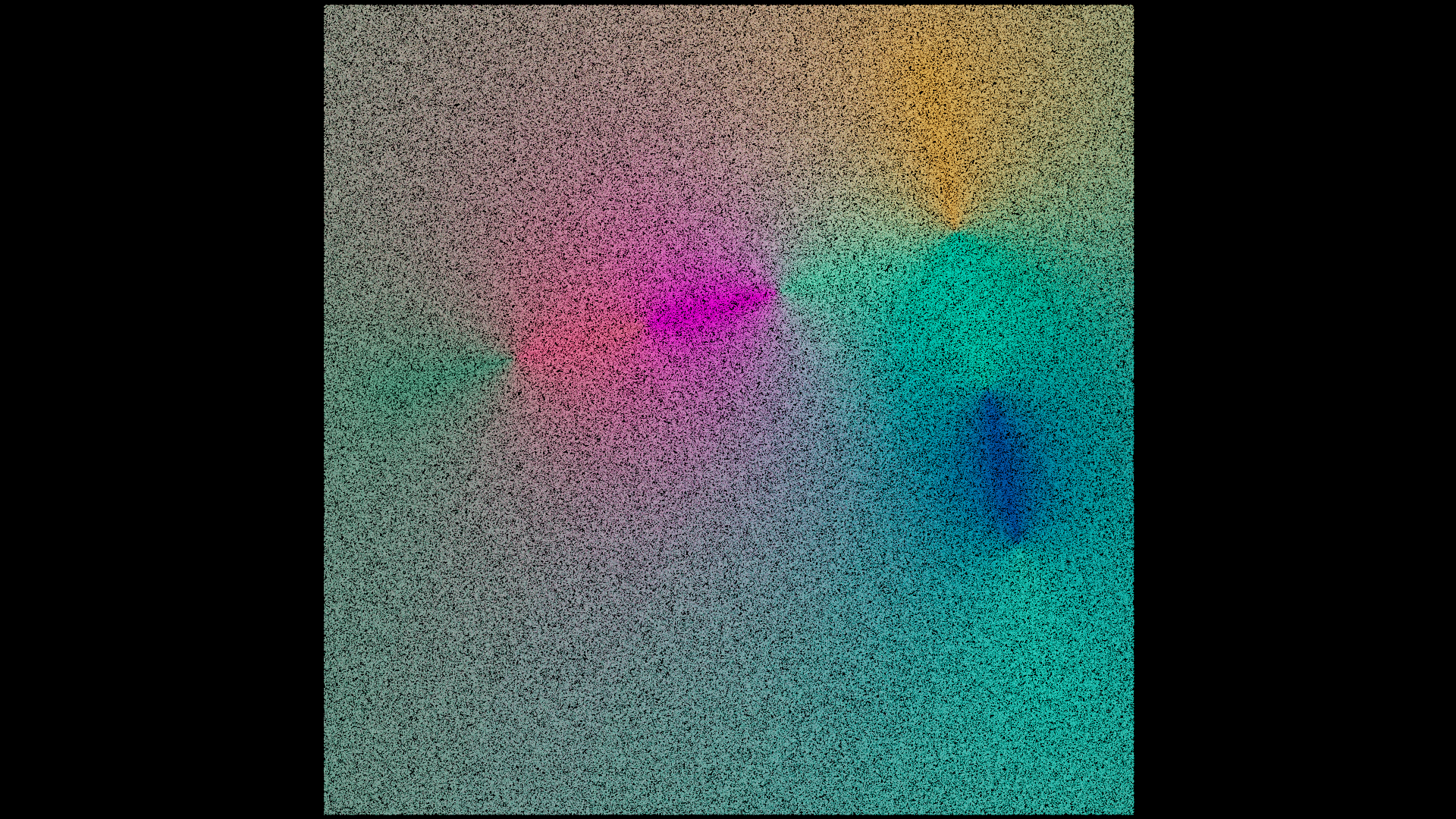

Monte Carlo Geometry Processing
